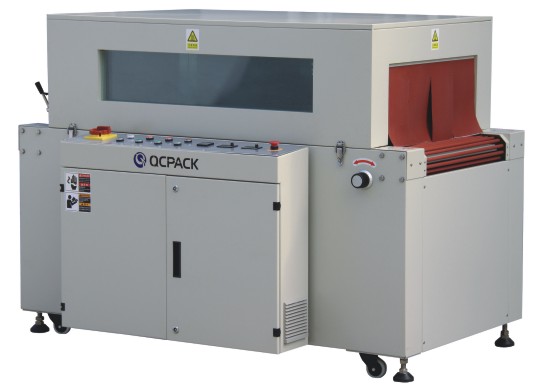

BM-500LShrink tunnel

The machine have adopts roller conveyor, the roller have covered by high temperature resistant silicone tube, and could rotating freely. And adopts stainless steel heating pipe, inside have three layers thermal insulation, double side heat cycling air make the heating even and constant temperature. Could adjust the air and conveyor speed. To achieve the best shrink effects. Equipped with three layers explosion-proof glass inspecting window, And could look at the shrink effects inside of the tunnel.

Back to list >

The main technical parameters

Machine model	BM-500L
power	380v/50-60Hz 15kw
Packing speed	0-30m/min
Shrink tunnel size	(L)1500×(W)500×(H)300mm
Machinery weight	400kg
Machinery overall dimension	(L)1800×(W)1100×(H)1300mm
Suitable material	PE、POF、PVC、PP

Technical parameter

No.	Item	Brand	Qty
1	Feeding motor	CPG（Taiwan）	1
2	Wind blowing motor	DOLIN（Taiwan）	1
3	Feeding inverter	DELTA（Taiwan）	1
4	Wind blowing inverter	DELTA（Taiwan）	1
5	Temperature controller	OMRON（Japan）	1
6	Breaker	SCHNEIDER（France）	5
7	Contactor	SCHNEIDER（France）	1
8	Auxiliary relay	OMRON（Japan）	6
9	Solid state relay	MAGER	1
10	Power switch	SIEMENS（Germany）	1
11	Emergency	MOELLER（Germany）	1
12	Heating tube	Taiwan	9
13	Conveying silicone tube	Taiwan	162
14	Visible window	High temperature resistant explosion-proof glass	3
