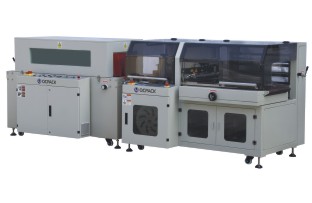

BTH-550+BM-500LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.

Automatic Grade: Automatic

Driven Type: Electric

Suitable shrink film: POF

Application: suitable for big size packing, no limit for length, width can be 500mm.

Back to list >

BTH-550+BM-500LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.

Automatic Grade: Automatic

Driven Type: Electric

Suitable shrink film: POF

Application: suitable for big size packing, no limit for length, width can be 500mm.

Back to list >

BTH-550+BM-500LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.

Automatic Grade: Automatic

Driven Type: Electric

Suitable shrink film: POF

Application: suitable for big size packing, no limit for length, width can be 500mm.

Back to list >

BTH-550+BM-500LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.

Automatic Grade: Automatic

Driven Type: Electric

Suitable shrink film: POF

Application: suitable for big size packing, no limit for length, width can be 500mm.

Back to list >

The main technical parameters


1. Side blade sealing continuously makes the unlimited length of the product;
2. Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing results;
3. It adopts the most advanced OMRON PLC controller and touch operator interface. Touch operator interface accomplish all working date easily;
4. Sealing knife uses the aluminum knife with DuPont Teflon with anti-stick coating & anti-high temperature to avoid cracking, coking and smoking with zero pollutionThe sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting;
5. Automatic film feeding punching device is to drill away the air and make sure the packing result is good;
6. Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;

7. Manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;

8. BM-500L adopts advance circulation blowing from the bottom of the tunnel, equipped double frequency inverter controls blowing, adjustable blowing direction and volume form bottom.

Technical parameter

Model

BTH-550

BM-500L

Max. Packing Size

(L)No limited (W+H)≤500x(H)≤250mm

(L)No limited (W)450 x(H)250mm

Max. Sealing Size

(L)No limited (W+H)≤550mm

(L)1500x(W)500 x(H)300mm

Packing Speed

30-40 packs/min.

0-30 m/min.

Electric Supply

& Power

220V / 50Hz   3 kw

380V / 50Hz   16 kw

Max Current

16 A

32 A

Air Pressure

5.5 kg/cm3

/

Weight

800 kg

400 kg

Overall Dimensions

(L)2000x(W)1270 x(H)1300mm

(L)1800x(W)1100 x(H)1300mm
